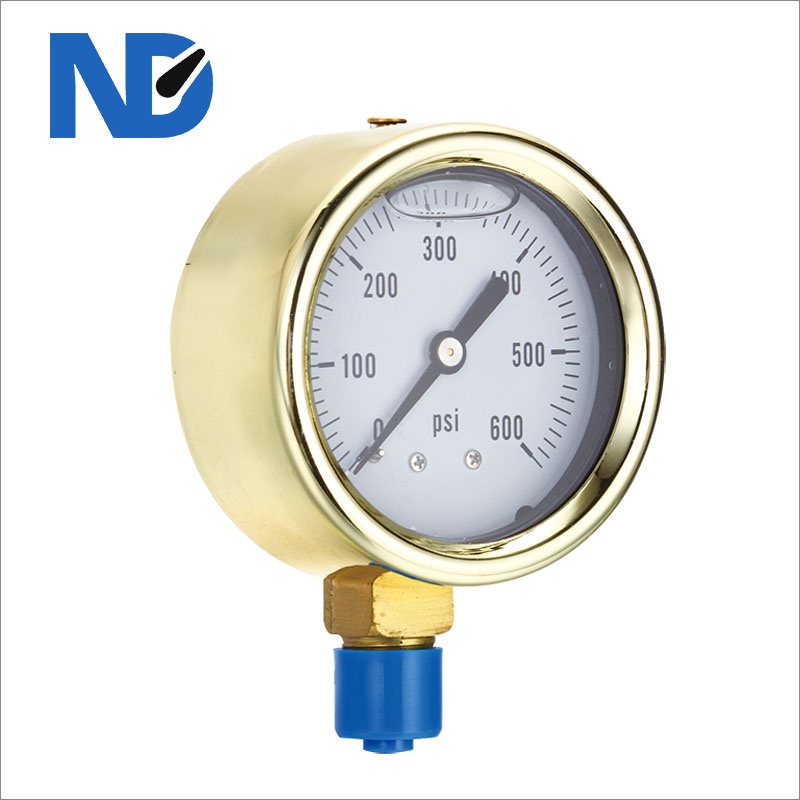

Size:  2.5”

Pressure Range:  From 30inHg to 10000Psi

Socket:  Brass material

Thread:  BSP,NPT,BSPT,PT,ZG,and other special specification

Bourdon Tube:  Phosphor bronze or Stainless Steel material

                 Case :  All brass material

                 Bezel:  Yellow colored plastic bezel

             Window:  PC lens or glass lens

Dial Plate:  Single ,dual or three scales(Bar, Psi, Kg/C㎡, Kpa, Mpa)

Accuracy:  3-2-3%,2.5%,1.6%

          Movement:  Steel,brass or Stainless Steel material

               Pointer:  Aluminium

           Restrictor:  Brass or St St material

Over Pressure:  130%

Connection Type:  Connection with the case together
