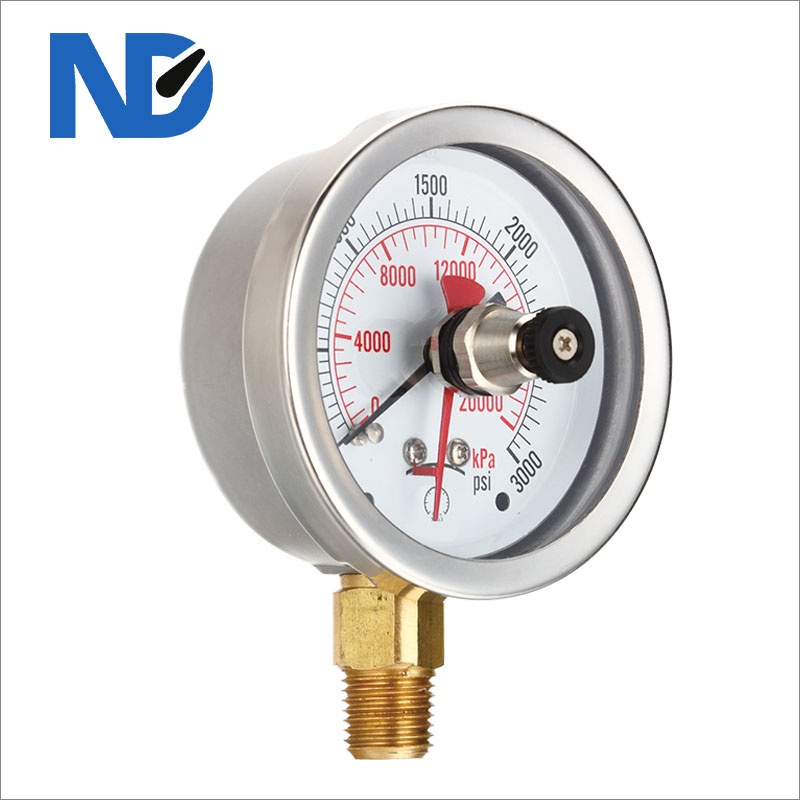

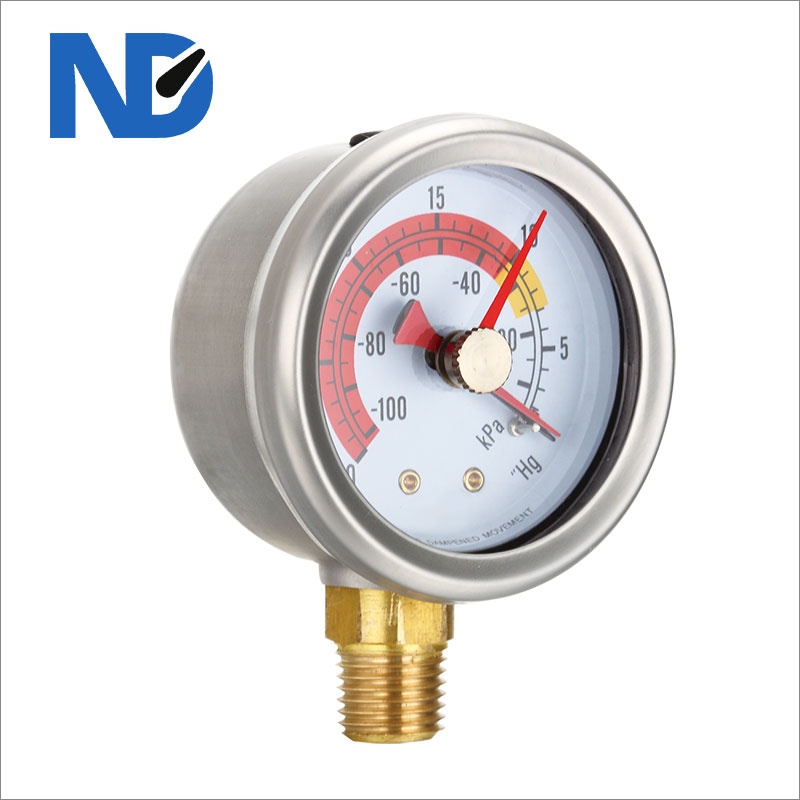

Liquid filled pressure gauge with red pointer
- Product No.:ND09
Size: From 2” to 4”
Pressure Range: From 30inHg to 1000bar
Socket: Brass , brass crome plated or St St material
Thread: BSP, NPT, BSPT, PT, ZG, and other special specification
Bourdon Tube: Phosphor bronze or stainless steel material
Case : 304 St St or 316 St St material,polished or not polished,back with screws
Bezel: St St crimped bezel or St St bayonet bezel,
Window: PC lens or glass lens
Dial Plate: Single ,dual or three scales(Bar, Psi, Kg/C㎡, Kpa, Mpa)
Accuracy: 3-2-3%,2.5%,1.6%,1%
Movement: Steel,brass or stainless steel material
Pointer: Aluminium material
Restrictor: Brass or St St material
Over Pressure: 130%
Connection Type: One connection sealed
