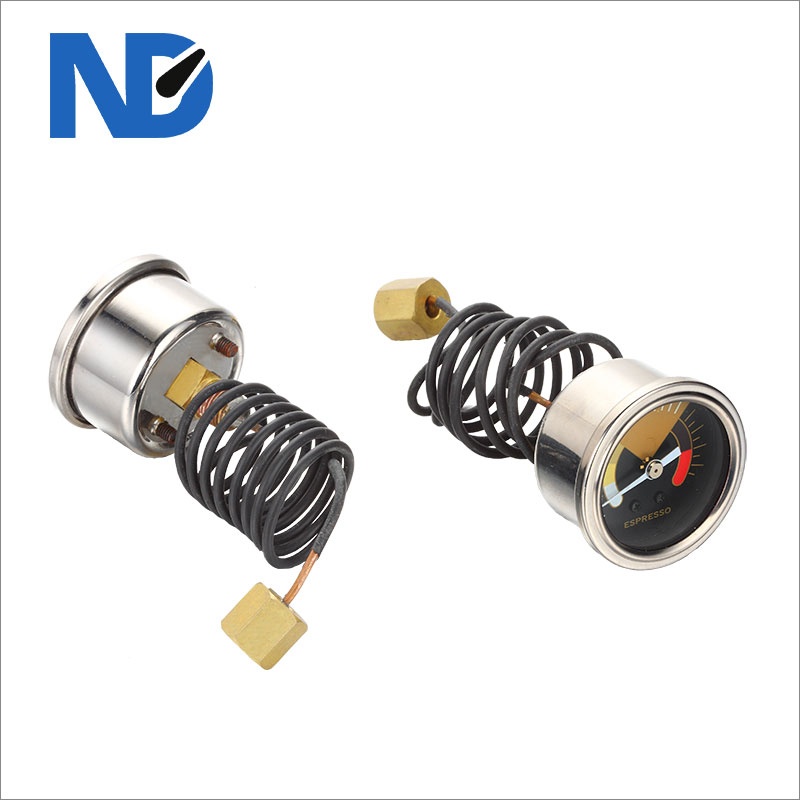

Capillary pressure gauge
- Product No.:ND0701
Size: From 1.5” to 2.5”
Pressure Range: From 0 to 300Psi
Socket: Brass or brass chrome plated
Thread: BSP, NPT, BSPT, PT, ZG, and other special specification
Bourdon Tube: Phosphor bronze or stainless steel material
Lower Case : 304 St St ,316 St St material, polished or not polished,back with no screws
Bezel: 304 St St crimped bezel or 316 St St crimped bezel
Window: PC lens or glass lens
Dial Plate: Single ,dual or three scales(Bar, Psi, Kg/C㎡, Kpa, Mpa)
Accuracy: 3-2-3%,2.5%,1.6%
Movement: Steel,brass or stainless steel material
Pointer: Aluminium material
Restrictor: Brass
Capillary: Brass
Over Pressure: 130%
Connection Type: One connection elded to the capillary
